IPG5000 | Impulse Generator

The Impulse Generator IPG5000 (formerly named IPG1005) is the high voltage supply to the seismic borehole sources BIS-SH and SBS42. The energy is stored in a large capacitor bank which discharges through a mechanical switch.

The IPG5000 is controlled by a Remote Control Unit (RCU). The RCU allows the user to start the seismic survey by a single or continuous shot release. The repetition rate is freely selectable under continuous operation. The RCU is connected to the seismograph to send an accurate trigger signal.

ipg5000 2

Impulse voltage: 5000 V
Impulse energy: 1000 J
Power supply: 230 V/110 V
Shot release:  Single or continuous
Repetition rate: 8 s (or freely selectable between 3 and 8 s)
Dimensions: 52 x 32 x 53 cm
Weight: 60 kg
Special features:
  • Impulse counter
  • Test trigger
  • Emergency OFF button
  • Intern/Extern operation
RCU:
  • Single or continuous shot release
  • Impulse counter
  • Test trigger
  • Trigger output
  • Emergency OFF button



IPG800 | Impulse Generator

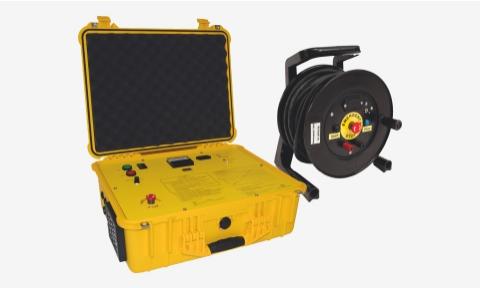

The Impulse Generator IPG800 is the high voltage supply to the seismic borehole source BIS-SH-DS. The energy is stored in capacitors which discharge through a mechanical switch. The lightweight IPG800 is incorporated in a robust PeliTM case.

The IPG800 is operated by a Remote Control Unit (RCU) which is used to start a pre-defined sequence of shots or to stop the operation. The RCU is connected to the seismograph to send an accurate trigger signal.

IPG800

Impulse voltage:

800 V

Impulse energy:

1000 J

Power supply:

2 x 12 V (car batteries)

Shot release:

Single or continuous (5/10 shots)

Repetition rate:

10 s

Dimensions:

53 x 43 x 23 cm

Weight:

15 kg

Special features:

Impulse counter



Test trigger



Emergency OFF button

RCU:

Start/stop operation



Trigger output



Emergency OFF button
